Big Country ToolBar

Big Country ToolBar

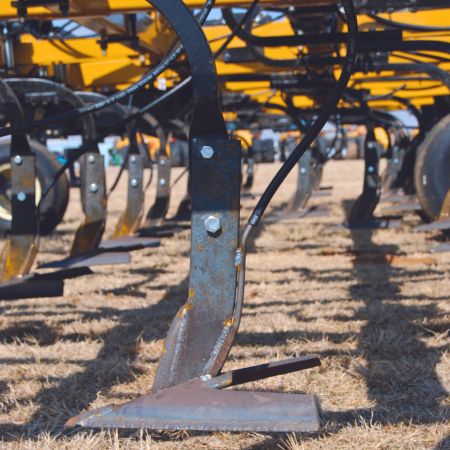

The Big Country ToolBar is the most economical all-around tillage equipment you can own. The innovatory Bull Shank System makes this workhorse adaptable to changing farming conditions from no-till to full/deep till, coulter/knives and deep rippers. Changing from a ripper point to a sweep or NH3 knife is quick and easy. The Bull Shank System also comes with our strip-till and zone till adaptors.

It’s available in widths of 26’ – 60’ and can be used with rippers, spikes, sweeps, and fertilizer knives

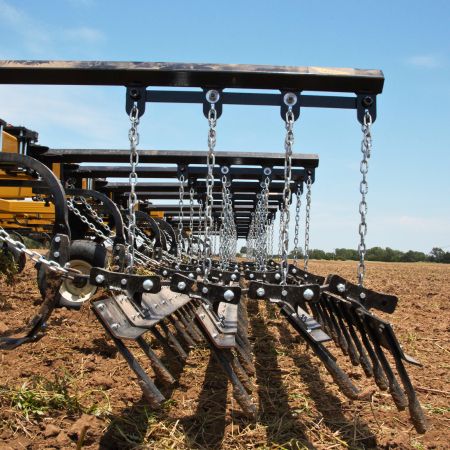

Also available with our 4 Row XT Harrow attachment.

Product Highlights:

Free-floating wagon-style tongue.
No hitch height adjustment or leveling needed, making it very user friendly.
Pulls evenly across the field preventing gouging and lifting with constant depth regardless of terrace, ditches,or uneven terrain.
The 41’ BCW with Bull Shank System weighs 15,750 pounds, or 18,250 lbs with the 4 Row XT Harrow.

Request a Quote

Features
Options

Features

Bull Shank –Works well in rocky conditions and never wears out. No pins, springs, or bushings to wear out or break, unlike the industry standard spring-loaded chisel shank. Made with two pieces for accessible replacement. The farmer-friendly design by Wako provides the option to utilize it for individualized farming practices.
Powerful Frame – Made with 4” x 6” square tubing and special welding techniquesproviding higher tensile strength and flexibility. The larger frame provides the weight required for a heavier and more powerful machine with the proper floatation, allowing for a very balanced pull even in wet conditions.
Cast Hinges with 1 ½” Pins – The cast hinges don’t freeze up.This means they last longer and require no maintenance, saving valuable time money. The pins are made from high strength steel for rugged use.
Nylatron Bearings – Every moving point has nylatron bearings which require no grease. They need very little maintenance and havea long lifespan.
Positive Depth Stops – Wako’s unique design exerts zero pressure on cylinders while in working field position. This allows for less work on the rephrasing cylinders and leads to a prolonged life.
Hubs and Spindles – Carrying capacity of 32,980 pounds (6 tires on the ground, center section only) for folded ease of transportation. Additional 4 or 10 tires on the ground depending on size.
Best in Industry Trash Flow–Shanks are at least 45 inches apart (side to side) on any given row with a shank clearance of 33” from the bottom of the frame to the bottom of the shank.
